In practice, however, it turns out that even after closing the door, we can still hear conversations, music, or other noises coming from adjacent rooms. For many people, this is surprising, especially when using a door specified by the manufacturer as acoustic.

Sound is an invisible phenomenon, which is why it is often difficult to imagine how it propagates. An analogy to water can be helpful. If there is even a small gap in a tank, water will attempt to flow through it. Acoustic energy behaves in a similar manner. A sound wave does not "know" that it should pass through the center of the door. Instead, it seeks the path of least resistance. In practice, this means that even a very heavy and massive door leaf may fail to provide the expected acoustic insulation if there are leaks or other easier transmission paths around it.

This is precisely why the acoustic performance of a door is a far more complex issue than it might seem at first glance. The final result is determined not only by the construction of the door leaf but also by a number of seemingly less significant elements, such as the door frame, seals, threshold, lock, or the installation method of the entire door set.

The door as an element of the acoustic insulation system

It is a common belief that the acoustic insulation of a door depends primarily on its thickness and mass. Indeed, according to the fundamental laws of acoustics, heavier partitions generally limit sound penetration more effectively. In practice, however, the door itself should be treated not as a single element, but as a complete system.

In addition to the door leaf, an essential role is played by the door frame, hinges, peripheral seals, threshold, and the method of joining the door to the wall. Each of these elements affects the tightness of the entire system and can determine its final effectiveness. From the perspective of acoustic energy flow, a door is only as good as its weakest component.

The quality of workmanship and installation is also of significant importance. Even the best product may fail to meet expectations if it is incorrectly fitted within the wall partition. This is why the parameters declared by manufacturers are not always fully reflected in actual operating conditions.

Small gaps, major consequences

One of the greatest challenges associated with the acoustic insulation of doors is leakage. To a user, a gap with a width of one or two millimeters seems practically imperceptible. For an acoustic wave, however, it can represent a highly efficient transmission path.

Returning to the analogy with water, it can be said that sound always attempts to find the easiest path. If even a small gap appears around the door, acoustic energy will penetrate through it much more easily than through a heavy and well-designed door leaf. As a result, the overall insulation of the system may be significantly lower than expected.

The areas around the bottom edge of the door, the contact points between the leaf and the frame, and the corners of the seals are particularly problematic. These are the locations where local leaks most frequently occur, leading to a deterioration in acoustic comfort. In many cases, improving the seals yields a greater effect than increasing the thickness of the leaf itself.

The role of the frame, lock, and hardware

When discussing door acoustics, relatively little attention is paid to the significance of the door frame. Yet, it is one of the key elements of the entire system. The connection between the frame and the wall is a place where installation errors frequently occur. Incomplete filling of the installation space or inadequate sealing can lead to the creation of additional sound transmission paths.

The lock and hinges can also have a significant impact on acoustic properties. To install them, it is necessary to make holes and routings in the door leaf. This causes local changes in the mass and stiffness of the structure. Additionally, the areas around the hinges and the lock are locations where the continuity of the peripheral seal is frequently disrupted. Similar phenomena can occur around the handle and other hardware elements, particularly if they affect the pressure of the leaf against the seals.

While the impact of these elements may seem minor, they are often responsible for the differences between the theoretical and actual acoustic insulation of a door.

Flanking transmission – when sound bypasses the door

One of the most interesting phenomena occurring in building acoustics is flanking transmission. Most people assume that sound passes directly through the partition separating two rooms. In reality, it very often chooses alternative routes.

Acoustic energy can propagate through adjacent walls, ceilings, floors, and structural connections. This means that even a highly effective door does not always guarantee the expected acoustic comfort. If the sound finds an easier path through other structural components of the building, the effectiveness of the entire solution can be significantly limited.

This phenomenon is one of the primary reasons for the discrepancies between laboratory test results and the parameters achieved after installing the door in an actual building. In practice, the user is often convinced that the problem lies with the door itself, whereas the real cause turns out to be the connection between the frame and the wall or another flanking transmission path.

Why laboratory results and reality are not always the same

Acoustic door manufacturers specify parameters obtained during laboratory tests. Such measurements are conducted under controlled conditions, which allow for the comparison of various solutions and the evaluation of their effectiveness. In real buildings, however, the situation is much more complex.

The final result is influenced, among other things, by the quality of installation, the precision of the joints, the condition of the seals, structural deformations, and the presence of additional sound transmission paths. Consequently, the insulation achieved after the door is installed may differ from the values obtained in laboratory tests.

This does not mean that laboratory results are useless. They serve as an essential reference point, but their interpretation must always take actual operating conditions into account.

How to "see" sound?

For many years, identifying the areas responsible for the degradation of acoustic insulation was a major challenge. Classical measurements allowed determining how much sound was transmitted from one room to another, but they did not indicate the exact location of the problem.

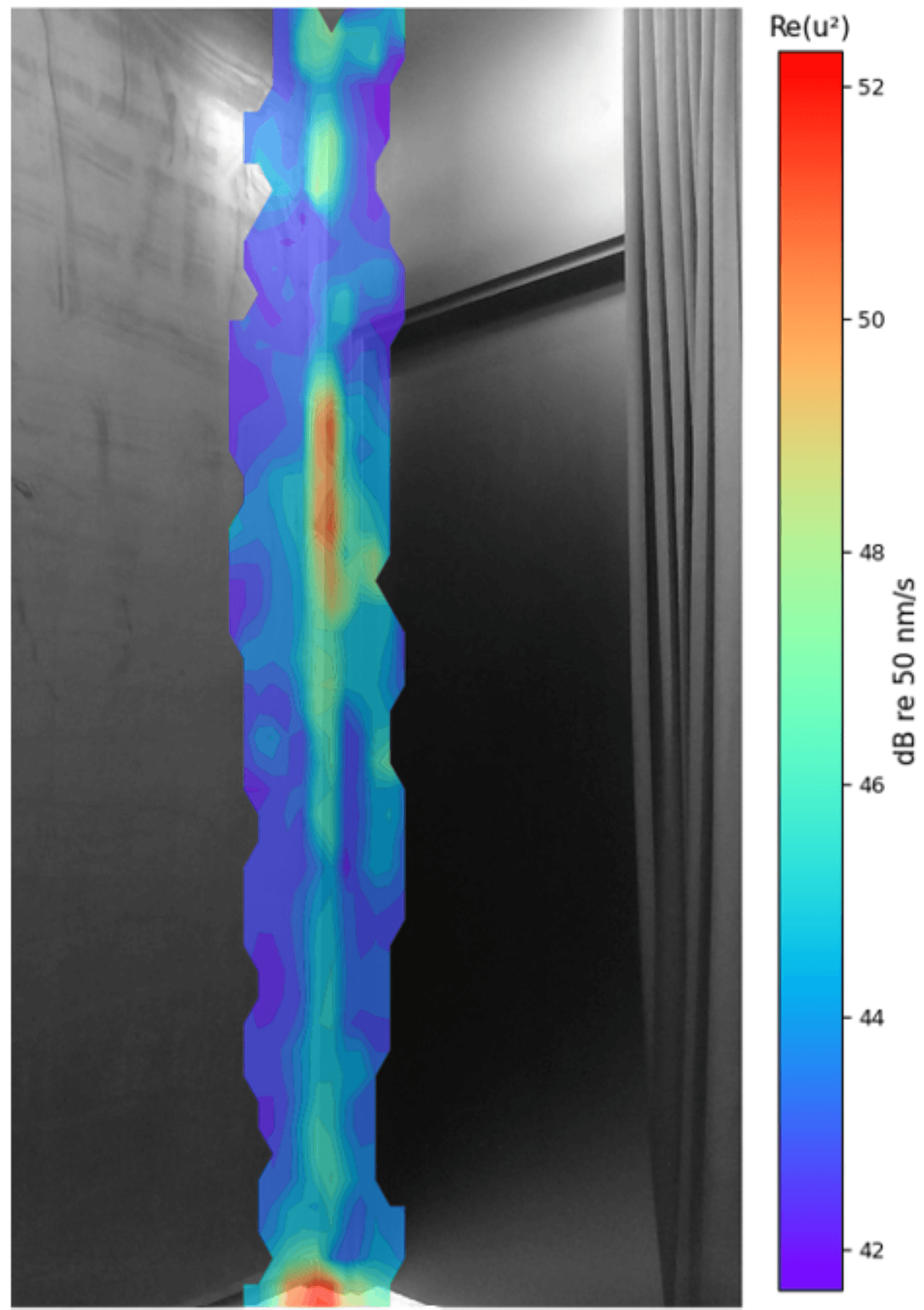

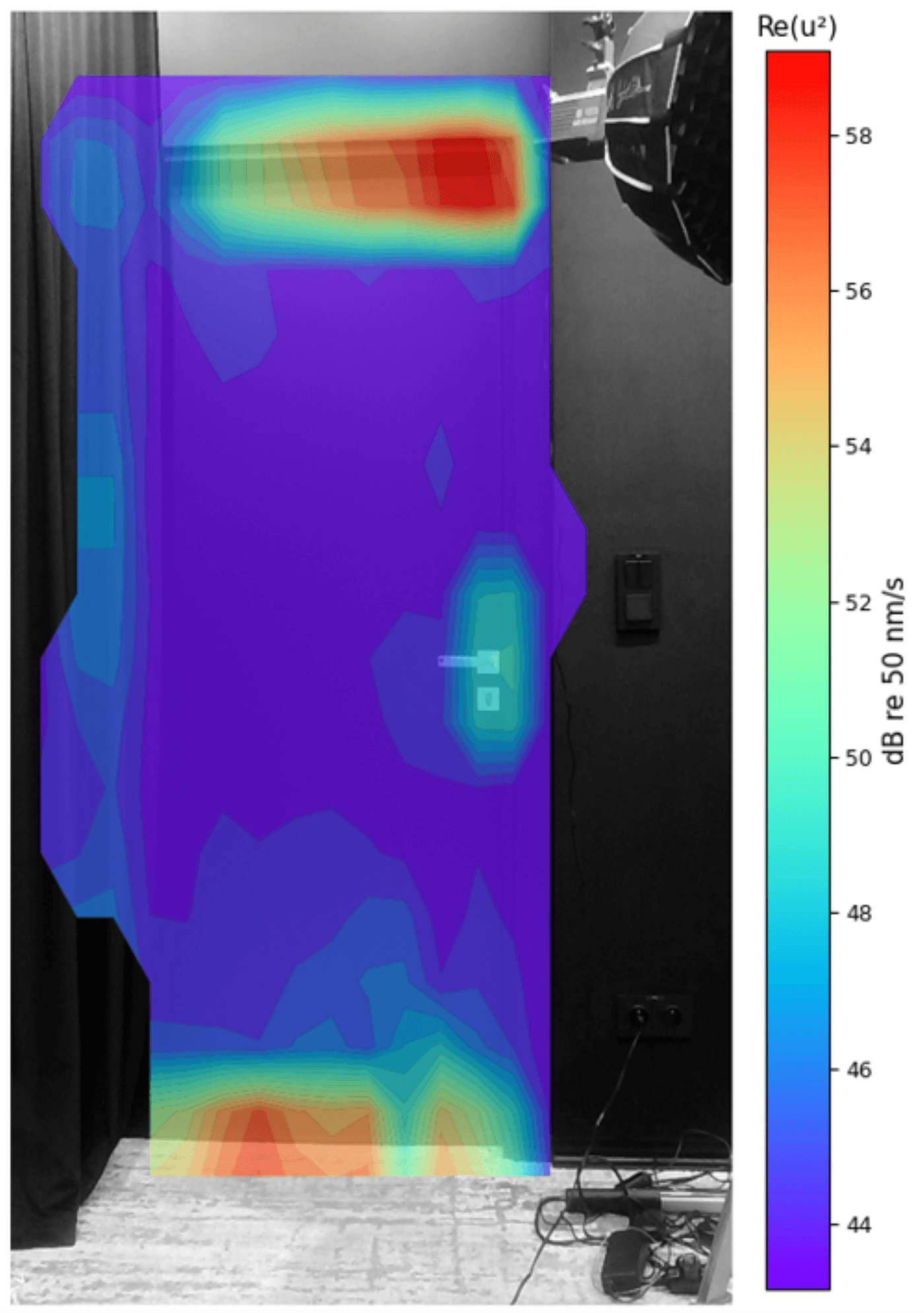

The development of intensity methods has significantly changed this situation. By using specialized probes, it is possible not only to determine the sound level but also to analyze the direction of the acoustic energy flow. This enables the creation of maps showing the locations through which sound penetrates most easily.

These types of measurements make it possible to locate leaks occurring around seals, thresholds, locks, frames, or structural joints. In practice, they literally allow one to "see" the acoustics and identify the source of the problem without the need for expensive trial-and-error work.

Modern diagnostic techniques demonstrate that building acoustics is not limited solely to measuring noise levels. Increasingly, it involves analyzing acoustic energy flow and understanding the mechanisms responsible for its transmission.

Summary

Sound, much like water, always attempts to find the easiest path. In the case of doors, this path does not necessarily lead through the center of the door leaf. It is frequently found in small gaps, around the lock, at the connection between the frame and the wall, or through adjacent building structural elements.

This is precisely why the acoustic effectiveness of a door depends not only on its design but also on the quality of workmanship, sealing tightness, and proper installation. Understanding these phenomena allows not only for the better design of building partitions but also for the more effective diagnosis of problems occurring in existing facilities.

Modern measurement methods now allow for the observation of phenomena that, until recently, remained invisible. Thanks to them, it is possible not only to determine that sound is passing through a partition but also to pinpoint the exact path it takes.

·         Asakura, T., & Sakamoto, S. (2013). Improvement of sound insulation of doors or windows by absorption treatment inside the peripheral gaps. Acoustical Science and Technology, 34(3), 241–252.

·         Hongisto, V. (2001). Sound insulation of doors – Part 1: Prediction models for structural and leak transmission.

·         Sotiropoulou, A., Karagiannis, I., Papaioannou, M., & Badogiannis, E. (2019). Sound Insulation Performance of Prefabricated Concrete Partitions in Hellenic School Buildings. Journal of Civil Engineering and Architecture.

·         Clasen, D., & Langer, S. (2007). Finite Element Approach for Flanking Transmission in Building Acoustics. Building Acoustics, 14(1), 1–14.

·         PN-EN ISO 10140-2. Acoustics -- Laboratory measurement of sound insulation of building elements.

·         PN-EN ISO 16283-1. Acoustics -- Field measurement of sound insulation in buildings and of building elements.

·         PN-EN ISO 15186-1. Acoustics -- Measurement of sound insulation in buildings and of building elements using sound intensity.
